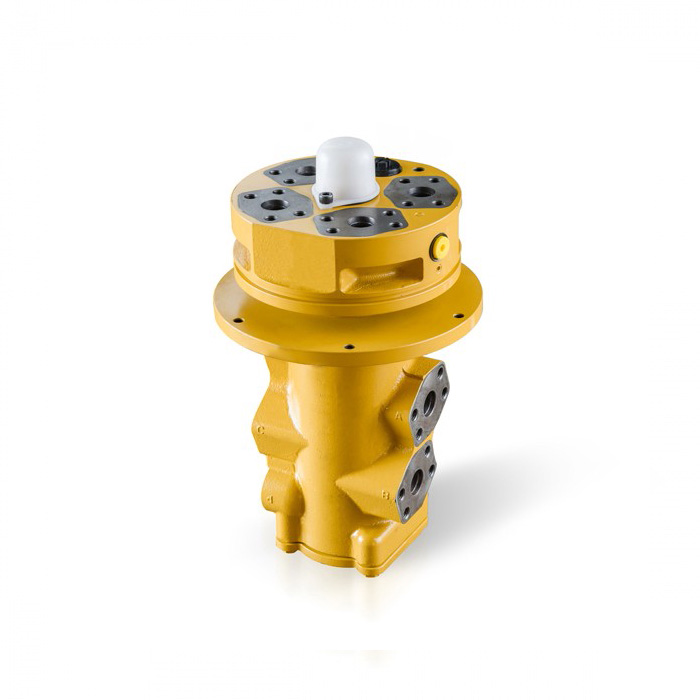

The Hydraulic Centre Joint consist of rotary shaft, rotary body, end cover and O-ring seal, dustproof ring, bolts and so on. The product features small rotating moment, flexible rotation, high pressure, good sealing performance, long life. The rotary body is installed on the lower platform while rotary shaft is installed on the upper platform. The rotary shaft can rotate with the rotation of upper platform. The hydraulics pipelines in the system can be connected to ports on the roatry shaft and rotary body. So, the upper and lower parts of the hydraulic pipelines have a relative rotary motion of 360 degrees without interference.
It is widely used in fully hydraulic excavators, cranes, etc. The central rotary joints are popular to Sany, XCMG, Liugong, Longgong, SDLG, Qingdao Lovol, Xiagong, and other famous domestic construction machinery manufacturers as well as foreign brands such as European and American Caterpillar, John Deere, Volvo, JCB, Korea Hyundai, Doosan, Sumitomo, Kobelco, and Hitachi.

Model	Number of passageway	Rated flow (L/min)	Rated pressure (MPa)	Maximum working pressure (MPa)	Rotation speed (r/min)	Model of applicable excavator
ZH0701A100-0000	7	10	16	31.3	15	0.1-0.5T mini
ZH1001A000-000	10	35	27.8	37.8	15	1-1.5T mini
ZH0812A101-0000	8	60	27.8	37.8	15	1.8-3.5T
ZH0812C000-0000	8	80	27.8	37.8	15	4-8T
ZH0632A001-0000	6	130	31.3	37.8	15	9-13T
ZH0641A202-0000	6	150	31.3	37.8	15	15-20T
ZH0641B200-0000	6	360	37.8	41.9	15	20-50T
ZH0642A104-0000	6	260	37.8	41.9	15	20-30T
ZH0651A203-0000	6	300	37.8	41.9	15	30-39T
ZY0641B000-0000	6	300	37.8	41.9	15	40-49.5T
ZH0662A000-0000	6	400	37.8	41.9	15	50-70T
ZH0662A500-0000	6	600	37.8	41.9	15	70-90T
ZH0852A000-0000	8	800	37.8	41.9	15	90-100T
ZH0852A200-0000	8	1000	37.8	41.9	15	200-260T
ZH0961A001-0000	9	1600	37.8	41.9	15	300-800T
ZH0962A000-0000	9	1600	37.8	41.9	15	300-800T
ZH1432A000-0000	14	100	31.3	37.8	15	6T class wheeled excavator
ZH1532A202-0000	15	300	37.8	41.9	15	15T class wheeled excavator
ZH0811A600-0000	8	40	27.8	37.8	15	6T drive shaft wheel excavator
ZH1112A000-0000	11	60	27.8	37.8	15	8T drive shaft wheel excavator
ZH0562A000-0000	5	300	27.8	37.8	15	Aerial work vehicles
ZH0812C101-0000	8	150	27.8	37.8	15	Aerial work vehicles
ZH0511A001-0000	5	150	27.8	37.8	15	Aerial work vehicles
